Denali D3 LED Single Auxiliary Driving Light

$184.99
SKU: DNL.D3.050
Shipping: Calculated at Checkout


Available for pickup today in our Colorado Showroom

 Denali D3 LED Single Auxiliary Driving Light

Our new D3 LED lights are built upon a decade of DENALI innovation to deliver the highest performing 36-watt street-legal driving light to hit the market. Our D3 driving light features our signature TriOptic™ beam system that includes a spot and hybrid driving lens with each light pod. Unlike previous TriOptic™ lights, the D3 hybrid driving beam is ECE and SAE compliant to deliver an impressive street-legal high beam in North America and European Union countries. But what if you're not concerned with street-legal precision and just want off-road outrageous? We got you covered too! The D3 spot lens was engineered for maximum beam distance measuring over 1900 feet at 1 lux (per pair). No other 36-watt light even comes close. The spot beam is so impressive it actually outperforms top-tier competitors' lights that are twice its size.

Our D3 is also available in an SAE & ECE certified fog beam for drivers seeking a true street-legal fog beam that is super wide and features a crisp horizontal "cut-off".

Features

  • TriOptic™ Lens System (includes spot and hybrid lenses with each pod)
  • Best in class street-legal spot and hybrid beams (SAE/DOT & ECE certified)
  • High-Intensity Series Cree LEDs outputting 2100 lumens per pod
  • DataDim™ 3-wire smart-dimming technology (compatible with all DENALI dimming controllers)
  • DrySeal™ Submersible Waterproof light can withstand the most extreme environments
  • Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
  • LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
  • Low profile mounting bracket with stainless steel hardware included
  • Additional SAE/DOT & ECE certified hybrid driving lens included (spot lens installed)
  • Amber & Selective Yellow lenses available (sold separately) Beam Performance (pair)

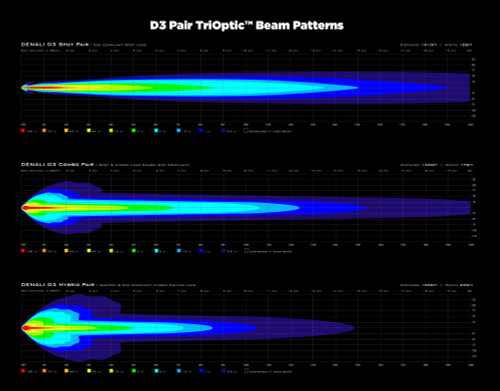

Beam Performance (pair)

  • Spot Beam
  • Beam Distance (at 1 lux): 1910 feet (582 meters)
  • Beam Width (at 1 lux): 100 feet (30 meters)

  • Combo Beam (1 spot, 1 hybrid)
  • Beam Distance (at 1 lux): 1520 feet (463 meters)
  • Beam Width (at 1 lux): 175 feet (53 meters)

    Hybrid Beam
  • Beam Distance (at 1 lux): 1050 feet (320 meters)
  • Beam Width (at 1 lux): 225 feet (69 meters)

Specs (single pod)

  • Pod Size: 3.5" (90mm) Round x 2.62" (66mm) Deep
  • LED: (3x) 11 Watt Cree XP-P LEDs
  • Power Draw: 36 Watts (3 Amps)
  • Lumens: 2100
  • DataDim™ Compatible: Yes
  • Operating Voltage: 9-32V DC
  • IP67 Waterproof & Submersible
  • Hybrid Lens Certifications: SAE/DOT J581 & ECE R112
  • Spot Lens Certifications: ECE R112

What’s in the Box?

  • (1x) D3 LED Light Pod (spot lens installed)
  • (1x) D3 Hybrid Lens
  • (1x) Hinge Mounts with M8 Stainless Steel Hardware
  • (1x) Wiring Pigtail
